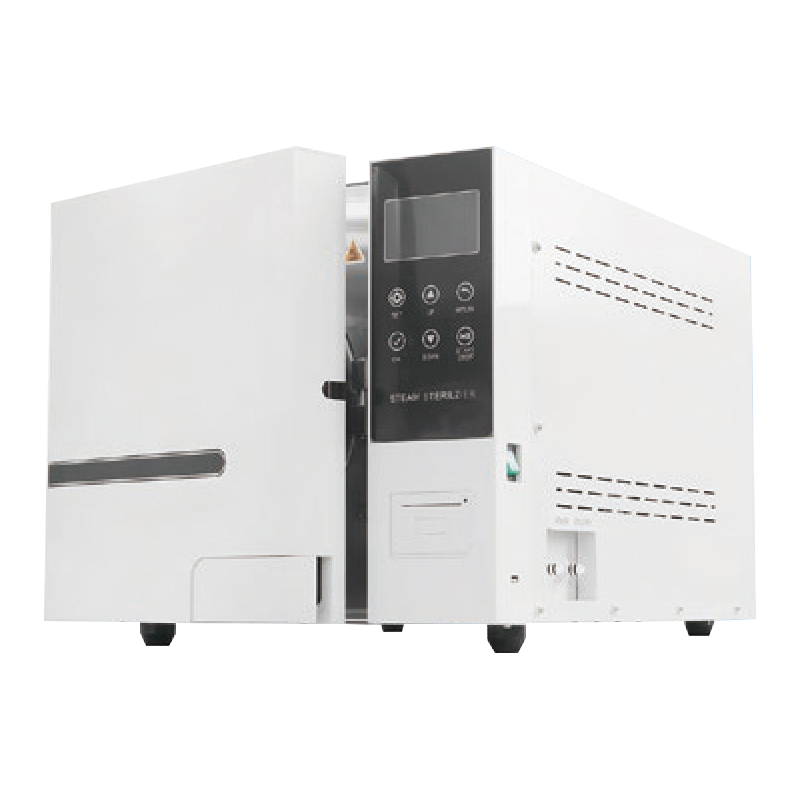

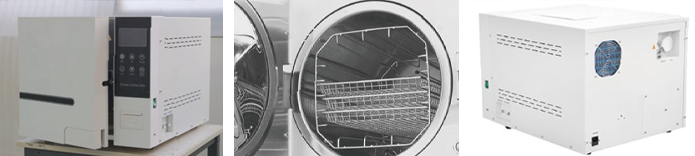

Tabletop Steam Sterilizer YXQ.DX-X Series (Pulsating Vacuum Bottom-Open)

Tabletop Steam Sterilizer YXQ.DX-X Series (Pulsating Vacuum Bottom-Open)

The Tabletop Steam Sterilizer YXQ.DX-X Series is a highly efficient and compact solution designed for fast and reliable high-temperature, high-pressure sterilization. Ideal for items like surgical instruments, dental tools, dressings, glassware, and rubber products, it is widely used in settings such as dental clinics, outpatient departments, community health centers, beauty institutions, and laboratories. The easy-to-use design and advanced features make it an excellent choice for quick sterilization in small and medium-sized medical and healthcare facilities.

Get A Quote
PREV：Portable Pressure Steam Sterilizer Model YXQ.PPS-280A and A+ (electric heating type)NEXT：Tabletop Steam Sterilizer Z Series (Pulsating Vacuum Automatic Door)
  • Parameter
  • Contact Us

  • Key Features:
    European Class B Compliance: Meets stringent European Class B standards with three adjustable pulse vacuums for efficient and thorough sterilization.
    Manual Bottom-Pulled Door: A unique design with a bottom-mounted door for user convenience and easier chamber access.
    4.3-Inch Full-Color LED Display: Offers a clear, high-definition interface for easy monitoring and control of the sterilization process.
    Enhanced Safety Mechanisms: Electronic safety interlock and automatic door-opening function ensure safe, hands-free operation throughout the cycle.
    Advanced Microcomputer Control: Fully automated control system with real-time fault detection, optimizing performance and ensuring reliable sterilization results.
    High-Efficiency Steam Generator: Built-in independent steam generator for rapid and stable saturated steam supply, ensuring consistent sterilization.

    Technical Parameters/Model YXQ.DX-18X YXQ.DX-23X
    Volume 18L 23L
    Power 2.2KW 2.2KW
    Voltage AC 110V 60HZ or AC 220V50HZ
    Design pressure -0.1~0.25MPa
    Design temperature 139℃
    Rated working pressure 0.22MPa
    Rated working temperature 134℃
    Sterilization temperature range 116～134℃
    Sterilization time range 4～120 min
    Drying time range 0~240 min
    Chamber size(mm) φ250x360 φ250×450
    Overall dimensions(mm) 590x505x450 640×505×450
    Packing dimensions(LxW×H)(mm) 710x560x510 750×560×510
    Gross/net weightt 60/49kg 63/51kg
