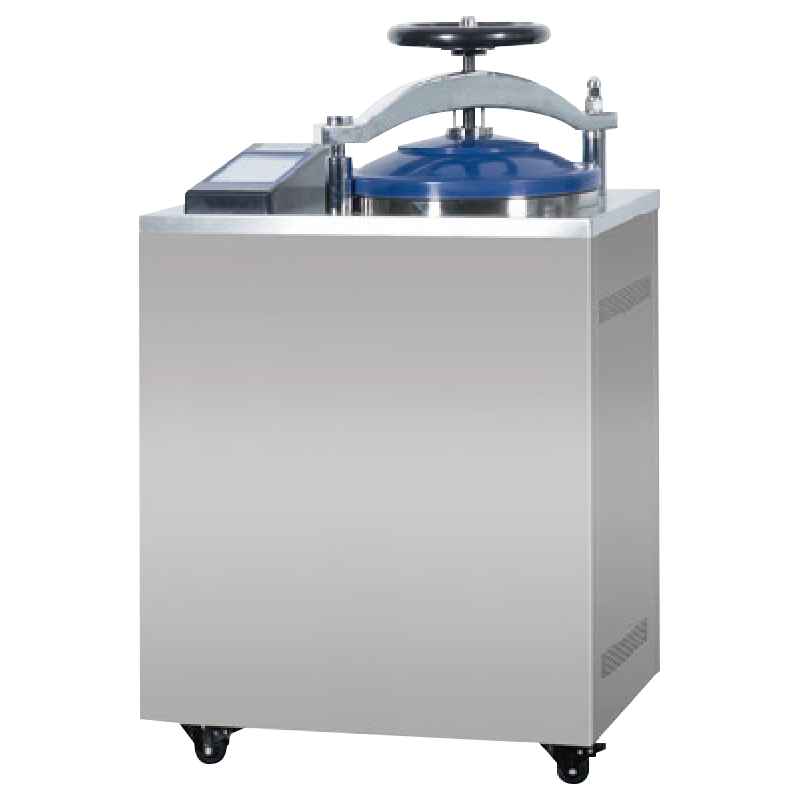

Vertical Steam Sterilizer M Series (Pulsating Vacuum)

Vertical Steam Sterilizer M Series (Pulsating Vacuum)

The Vertical Steam Sterilizer M Series (Pulsating Vacuum) is a safe and reliable sterilization solution, equipped with an advanced microcomputer control system, evaporator, and multiple safety mechanisms. This fully automated equipment is ideal for sterilizing a wide range of items such as surgical instruments, dressings, utensils, and culture media in medical institutions, research laboratories, and other healthcare facilities.

Get A Quote
PREV：Vertical Steam Sterilizer X Series (Multi-functional Laboratory Customized Model)NEXT：Horizontal Steam Sterilizer
  • Parameter
  • Contact Us

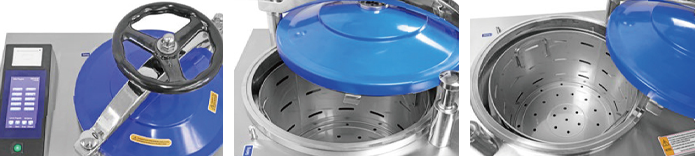

  • Key Features:
    Self-Expanding Sealing Ring: High-quality sealing for reliable performance.
    Drying Function: Integrated drying after sterilization.
    Automatic Water Intake: Ensures consistent water levels for operation.
    Stainless Steel Inner Chamber: Durable and easy to maintain, with an option for a mesh basket.
    Safety Protections: Includes over-temperature, over-pressure, low water level, and anti-dry heating safeguards.
    Audible Buzzer: Alerts upon completion of sterilization with automatic shutdown.
    Three-Stage Pulsating Vacuum: Enhances sterilization effectiveness.
    Touch Screen LCD Display: Intuitive interface for easy operation and monitoring.

    Product parameters

    Technical Parameters/Model YXQ.LX-35M YXQ.LX-50M YXQ.LX-75M YXQ.LX-100M
    Volume 35L 50L 75L 100L
    Power 3.5KW 3.5KW 4.5KW 4.5KW
    Voltage AC 110V 60HZ or AC 220V50HZ
    Design pressure -0.1～0.25MPa
    Design temperature 139℃
    Rated working pressure 0.22MPa
    Rated working temperature 134℃
    Sterilization temperature range 116～134℃
    Sterilization time range 4～120 min
    Drying time range 0～240 min
    Chamber Size(mm) φ300×545 φ400×515 φ400x665 φ450×725
    Bucket dimension(mm) φ275×395 φ375×235×2 φ375×265×2 φ425×275×2
    (Optional)basket dimension(mm) φ270x380 φ370×220x2 φ370×250x2 φ420x265x2
    Outer dimension(mm) 430x610x1050 540x761×1180 540×761×1180 790×570x1265
    Packing size(LxWxH)(mm) 670x520×1180 840x610×1310 840×610x1310 870x650x1380
    Gross/net weight(kg) 86/80kg 143/114kg 150/121kg 180/146kg
