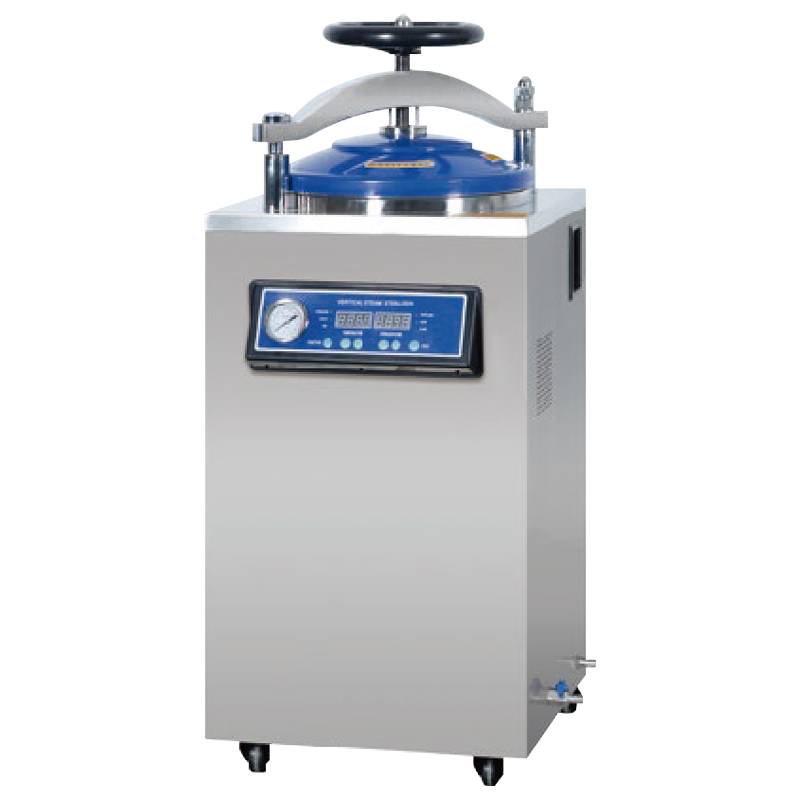

Vertical Steam Sterilizer B Series (Digital Display Automatic Control)

Key Features:
Advanced Microcomputer Control: Fully automated with adjustable sterilization parameters for precise control over temperature and cycle times, ensuring optimal sterilization for diverse materials.
High-Quality Stainless Steel Construction: Durable and corrosion-resistant, providing long-term reliability and ease of maintenance.
Efficient Safety Mechanisms: Includes multiple protective features such as over-temperature, over-pressure self-relief, low water level, and anti-dry heating protection, ensuring safe and secure operation.
User-Friendly Digital Display: Clear digital display paired with mechanical buttons, offering straightforward operation and easy monitoring of the sterilization process.
Convenient Automated Features: Equipped with an automatic water intake function (optional), buzzer alerts upon cycle completion, and automatic discharge of cold air and steam after sterilization, enhancing ease of use and efficiency.
Versatile Sterilization Chamber: Features a stainless steel inner cylinder (or mesh basket) for versatile sterilization, along with a self-expanding seal for enhanced safety and airtight integrity.

Product parameters

Technical Parameters/Model	YXQ.LX-35B	YXQ.LX-50B	YXQ.LX-75B	YXQ.LX-100B
Volume	35L	50L	75L	100L
Power	2.5KW	3.5KW	4.5KW	4.5KW
Voltage	AC 110V 60HZ or AC 220V 50HZ
Design pressure	0.25MPa
Design temperature	139℃
Rated working pressure	0.22MPa
Rated working temperature	134℃
Sterilization temperature range	116～134℃
Sterilization time range	4～120 min
Drying time range
Chamber Size(mm)	φ300×450	φ350×515	φ400×585	φ450x615
Bucket dimension(mm)	φ275×395	φ325×235×2	φ375×265×2	φ425×275×2
(Optional)basket dimension(mm)	φ270x380	φ320×220×2	φ370×250×2	φ420×265×2
Outer dimension(mm)	476x473x990	544×536x1100	586×576x1210	620x610x1275
Packing size(LxWxH)(mm)	520×560×1120	580x630x1230	670x620x1350	690x650×1410
Gross/net weight(kg)	74/62kg	103/80kg	115/90kg	134/106kg
