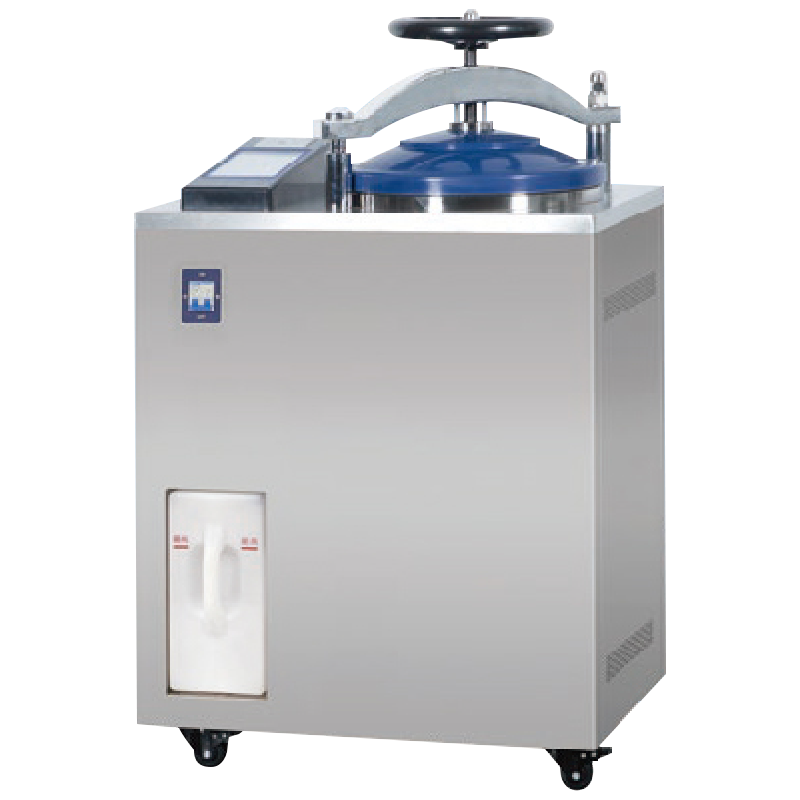

Vertical Steam Sterilizer X Series (Multi-functional Laboratory Customized Model)

Vertical Steam Sterilizer X Series (Multi-functional Laboratory Customized Model)

The Vertical Steam Sterilizer X Series (Multi-functional Laboratory Customized Model) offers a highly efficient and fully automated sterilization solution. With advanced microcomputer control, multiple safety features, and a versatile design, it is ideal for sterilizing a variety of materials, such as surgical instruments, medical dressings, culture media, and laboratory utensils. This equipment is widely used in medical, research, and industrial environments where precise sterilization is crucial.
Get A Quote
PREV：Vertical Steam Sterilizer B Series (Digital Display Automatic Control)NEXT：Vertical Steam Sterilizer M Series (Pulsating Vacuum)
  • Parameter
  • Contact Us

  • Key Features:

    Durable Stainless Steel Chamber: Corrosion-resistant and long-lasting.
    Customizable Sterilization Settings: Adjustable times (1-999 min) and temperatures (105°C - 134°C) for flexibility.
    Multi-Stage Exhaust System: Reduces cycle times and improves efficiency.
    HD LED Display with Touch Control: User-friendly interface for easy operation and monitoring.
    Comprehensive Safety Protections: Includes over-temperature, over-pressure, and low water level safeguards.
    Built-In Printer: Automatically records sterilization data for traceability.

    Product parameters

    Technical Parameters  Model YXQ.LX-35X YXQ.LX-50X YXQ.LX-75X YXQ.LX-100X
    Volume 35L 50L 75L 100L
    Power 2.5KW 3.5KW 4.5KW 4.5KW
    Voltage AC 110V 60Hz or AC 220V 50HZ
    Design pressure -0.1-0.25MPa
    Design temperature 139℃
    Rated working pressure 0.22MPa
    Rated working temperature 116～134℃
    Sterilization temperature range 106～134℃
    Sterilization time range 1～9999 min
    Drying time range 0～240 min
    Chamber Size(mm) φ300x450 φ350x515 φ400×585 φ450x615
    Bucket dimension(mm) φ275×395 φ325×235×2 φ375×265×2 φ425×275×2
    (Optional)basket dimension(mm) φ270×380 φ320×220×2 φ370×250x2 φ420×265×2
    Outer dimension(mm) 430x610x1030 500×675x1100 540×716x1165 575×748x1255
    Packing size(LxWxH)(mm) 670x520×1160 590×740x1230 790x610x1310 820×650×1380
    Gross/net weight(kg) 90/74kg 125/97kg 145/114kg 161/129kg
