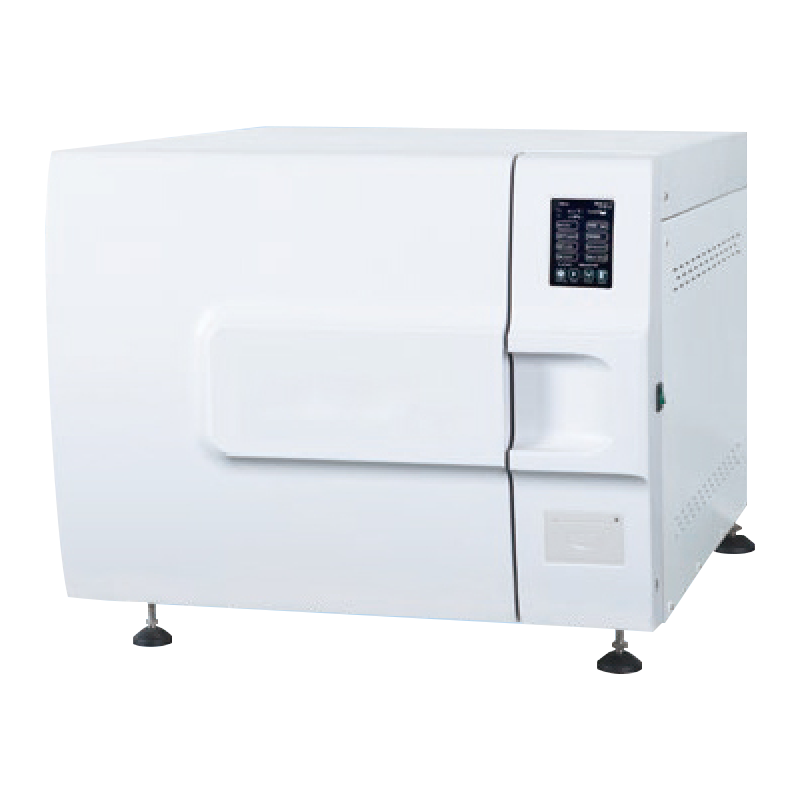

Tabletop Steam Sterilizer Z Series (Pulsating Vacuum Automatic Door)

The Tabletop Steam Sterilizer Z Series is an efficient, user-friendly sterilization solution designed for the high-temperature, high-pressure sterilization of a variety of items, including surgical instruments, dental equipment, dressings, glassware, and rubber products. Featuring a compact design and intuitive controls, it is widely used in dental clinics, outpatient departments, community health centers, beauty institutions, and laboratories. This sterilizer is the perfect choice for quick, reliable sterilization in small to medium-sized medical facilities.

Get A Quote

Key Features:
Intuitive 4.7-Inch LED Touchscreen: A vibrant, full-color display for easy navigation and control of the sterilization process.
Automated Door System: Features an automatic door opening and closing structure, paired with an electronic safety interlock for smooth and secure operation.
Advanced Microcomputer Control: Fully automated process management with real-time fault detection, ensuring precision and minimizing the risk of error during operation.
High-Efficiency Steam Generation: Equipped with a built-in, independent steam generator that delivers rapid and stable saturated steam for consistent results.
Comprehensive Safety & Protection: Includes a range of protective features such as automatic pressure calibration, pulse vacuums (1-6 adjustable), and emergency stop function for added user security.
Data Recording and Reporting: Integrated with a built-in printer and USB function for easy data storage and documentation, with 5 preset programs and 3 test programs for flexibility.

Product parameters

Technical Parameters/Model	YXQ.DX-18Z	YXQ.DX-23Z	YXQ.DX-45Z	YXQ.DX-50Z
Volume	18L	23L	45L	50L
Power	2.2KW	2.2KW	3.5KW	3.5KW
Voltage	AC 110V 60HZ or AC 220V 50HZ
Design pressure	-0.1~0.25MPa
Design temperature	139℃
Rated working pressure	0.22MPa
Rated working temperature	134℃
Sterilization temperature range	116～134℃
Sterilization time range	4～120 min
Drying time range	0～240 min
Chamber size(mm)	φ250×360	φ250x450	φ320x615	φ320x665
Overall dimensions(mm)	710×505x450	710×505x450	850x660×570	850×660×570
Packing dimensions(L×W×H)(mm)	790×590×520	790×590×520	980×770×720	980x770×720
Gross weight/Net weight	65/53kg	70/58kg	127/102kg	131/106kg
